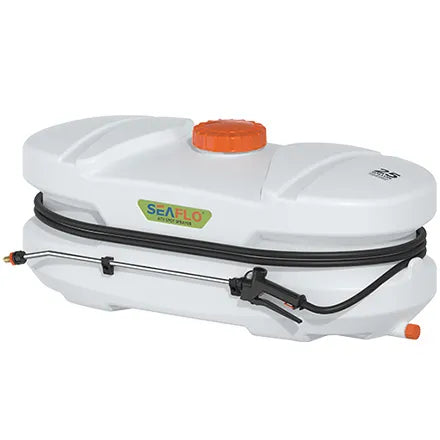

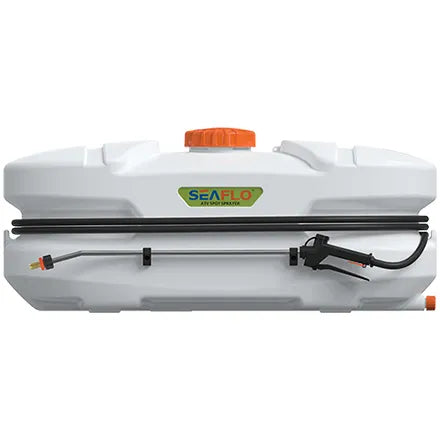

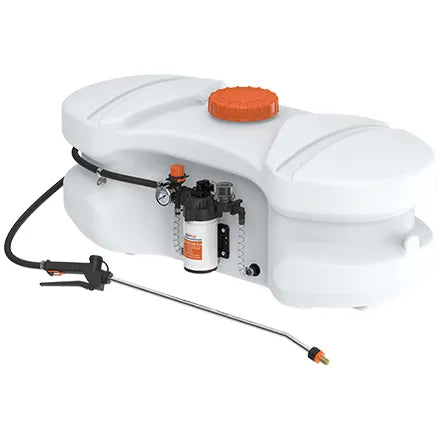

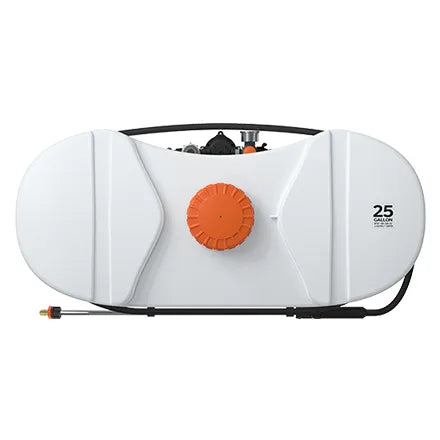

Seaflo ATV Quad Sprayer 100L 12V

The Seaflo Quad Sprayer 100L 12V is a self-contained ATV sprayer designed for weed control, spot spraying, fence line treatment and general farm maintenance. The 100-litre HDPE tank runs from your quad or vehicle battery via a 5-metre power lead, powering a SEAFLO diaphragm pump with constant flow and no pulsation. Includes a hand lance, three-filter system and pressure regulator. Ready to mount and use straight out of the box.

Best For

Weed control & fence line spraying	Spot spraying & field maintenance
ATV, quad & utility vehicle mounting	Herbicide & fertiliser application

Key Features

✓ Constant flow with no pulsation The SEAFLO diaphragm pump delivers a steady, consistent flow at up to 150 PSI - no surging or uneven spray pattern. Chemical-resistant construction for compatibility with common agricultural chemicals.

✓ Hand lance with individual shut-off taps The hand lance handles targeted spot spraying, fence lines and awkward areas. Each has its own shut-off tap so you can switch between them quickly.

✓ Triple filtration with visible cleanable filter Three filters protect the pump and nozzles from debris. The visible filter is easy to remove and clean without tools - keeping the system running cleanly between uses.

✓ 100L HDPE tank with visible liquid level UV-resistant, impact-resistant stabilised polyethylene tank with uniform wall thickness. Visible liquid level lets you monitor remaining chemical without stopping. Wide fill opening reduces spillage when filling.

What's in the Box

• Seaflo 100L HDPE tank with frame
• SEAFLO diaphragm pump - 12V, 150 PSI, 2.0 GPM
• 2.2m spray boom - 3 nozzle tube, folds for storage
• Hand lance - for spot and targeted spraying
• Pressure regulating valve and pressure gauge
• Triple filter system including visible cleanable filter
• 5m power lead with battery clamp connectors
• Agricultural hose

Common Questions

How does it connect to the quad?
The pump runs from a 12V battery via the included 5-metre power lead with crocodile clip connectors. It connects directly to your quad or vehicle battery - no separate battery required.

Is it suitable for herbicides and weed killers?
Yes. The pump construction is resistant to common agricultural chemicals. Always check the chemical manufacturer's guidelines for sprayer compatibility before use.

How do I clean the filters?
The visible filter is designed to be easily removed and cleaned without tools. Flush the system with clean water after each use and check the filters regularly for debris build-up.

Specifications:

Tank capacity	100 litres (25 GAL)
Power supply	12V DC (battery clamp connection)
Open flow rate	2.0 GPM / 7.6 LPM
Shut-off pressure	150 PSI / 10.3 bar
Pressure regulating valve	Yes
Power lead length	5m (16ft)
Tank material	HDPE stabilised polyethylene
Filters	3 (including visible cleanable filter)
Unit weight	10.1 kg
Dimensions (L x W x H)	974 x 432 x 415 mm
